產品介紹
石墨專用球刀2刃
GB-2T-CVD Graphite Dedicated End Mills
- 應用範圍

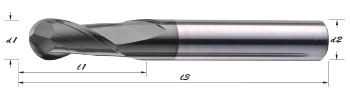

Spec.
| Type No. | Diameter | Flute Length | O.A.L. | Shank Dia |
| 型號 | 直徑d1 | 刃長L1 | 全長L3 | 柄徑d2 |
| GB-0102-CVD | R0.5 | 2 | 50 | 4 |
| GB-0152-CVD | R0.75 | 3 | 50 | 4 |
| GB-0202-CVD | R1 | 4 | 50 | 4 |
| GB-0252-CVD | R1.25 | 5 | 50 | 4 |
| GB-0302-CVD | R1.5 | 6 | 50 | 4 |
| GB-0352-CVD | R1.75 | 7 | 50 | 4 |
| GB-0402-CVD | R2 | 8 | 50 | 4 |
| GB-0502-CVD | R2.5 | 10 | 50 | 6 |
| GB-0602-CVD | R3 | 12 | 50 | 6 |
| GB-0802-CVD | R4 | 16 | 60 | 8 |
| GB-1002-CVD | R5 | 20 | 75 | 10 |
| GB-1202-CVD | R6 | 24 | 75 | 12 |
| GB-1402-CVD | R7 | 28 | 100 | 16 |
| GB-1602-CVD | R8 | 32 | 100 | 16 |
| GB-1802-CVD | R9 | 36 | 100 | 20 |
| GB-2002-CVD | R10 | 40 | 100 | 20 |
| unit: mm | ||||
