Square End Mills-4 Flute ZR Especially For Titanium
TE-4T-ZR
- Application
- Scope of application: Plastic mold、forging mold、casting mold、electronic components、clock parts and other precision parts.
- Applicable materials: Stainless Steels、Titanium alloys、heat-treated steel and soldering steel.
- Main features : The 4-flute end mill is mainly used for lateral fine cutting. It is suggested that steels with hardness less than HRC 60 should be cut. The low torque can make high-speed cutting. The 4-flute design can reduce tool wear when a work piece needs to be cut for a long time so that the dimensional accuracy of the work piece can be increased.
Spec.

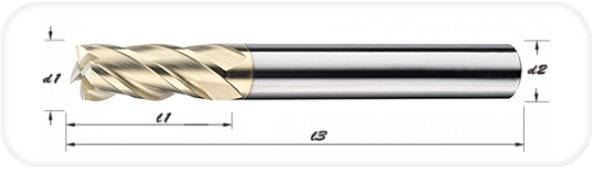

| Type No. | Diameter | Flute Length | O.A.L. | Shank Dia |
| 型號 | 直徑d1 | 刃長L1 | 全長L3 | 柄徑d2 |
| TE-0104-ZR | 1 | 3 | 50 | 4 |
| TE-0154-ZR | 1.5 | 4 | 50 | 4 |
| TE-0204-ZR | 2 | 6 | 50 | 4 |
| TE-0254-ZR | 2.5 | 8 | 50 | 4 |
| TE-0304-ZR | 3 | 8 | 50 | 4 |
| TE-0354-ZR | 3.5 | 10 | 50 | 4 |
| TE-0404-ZR | 4 | 11 | 50 | 4 |
| TE-0454-ZR | 4.5 | 13 | 50 | 6 |
| TE-0504-ZR | 5 | 13 | 50 | 6 |
| TE-0554-ZR | 5.5 | 13 | 50 | 6 |
| TE-0604-ZR | 6 | 16 | 50 | 6 |
| TE-0654-ZR | 6.5 | 16 | 60 | 8 |
| TE-0704-ZR | 7 | 16 | 60 | 8 |
| TE-0754-ZR | 7.5 | 16 | 60 | 8 |
| TE-0804-ZR | 8 | 20 | 60 | 8 |
| TE-0854-ZR | 8.5 | 20 | 75 | 10 |
| TE-0904-ZR | 9 | 20 | 75 | 10 |
| TE-0954-ZR | 9.5 | 25 | 75 | 10 |
| TE-1004-ZR | 10 | 25 | 75 | 10 |
| TE-1104-ZR | 11 | 30 | 75 | 12 |
| TE-1154-ZR | 11.5 | 30 | 75 | 12 |
| TE-1204-ZR | 12 | 30 | 75 | 12 |
| TE-1404-ZR | 14 | 40 | 100 | 16 |
| TE-1604-ZR | 16 | 40 | 100 | 16 |
| TE-1804-ZR | 18 | 45 | 100 | 20 |
| TE-2004-ZR | 20 | 45 | 100 | 20 |
| unit: mm | ||||
