Long Flute Aluminum Cutting Square End Mills-2 Flute Helix angle 55°
P6AEF55-2T - Aluminum Square
- Application
- Scope of application: Aerospace parts、bicycle parts、vehicle parts、electronic and computer components.
- Applicable materials: Aluminum alloy、soft material.
- Main features: Cutting edge is sharp and will not get scraps, and excellent surface roughness can be obtained when making fine trimming.
Spec.

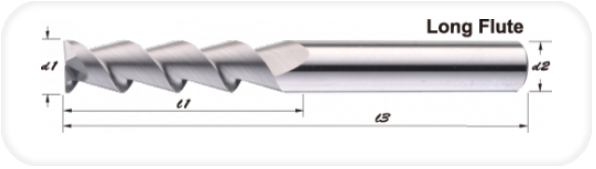

| Type No. | Diameter | Flute Length | O.A.L. | Shank Dia |
| 型號 | 直徑d1 | 刃長L1 | 全長L3 | 柄徑d2 |
| P6AEF55-0302 | 3 | 12 | 50 | 6 |
| P6AEF55-0402 | 4 | 15 | 50 | 6 |
| P6AEF55-0502 | 5 | 20 | 50 | 6 |
| P6AEF55-0602 | 6 | 25 | 50 | 6 |
| P6AEF55-0802 | 8 | 32 | 60 | 8 |
| P6AEF55-1002 | 10 | 45 | 75 | 10 |
| P6AEF55-1202 | 12 | 45 | 75 | 12 |
| P6AEF55-1602 | 16 | 65 | 100 | 16 |
| P6AEF55-1602 | 16 | 75 | 100 | 16 |
| P6AEF55-2002 | 20 | 75 | 100 | 20 |
| unit: mm | ||||
