Aluminum Cutting Ball Nose End Mills-2 Flute
P6AB-2T - Aluminum Ball Nose
- Application
- Scope of application: Aerospace parts、bicycle parts、vehicle parts、electronic and computer components.
- Applicable materials: Aluminum and copper alloy.soft material.
- Main features: Cutting edge is sharp and will not get scraps, and excellent surface roughness can be obtained when making fine trimming, the ball end mill is mainly used for fine milling and cutting curved surfaces, the burnished can make polish of work pieces nicely.
Spec.

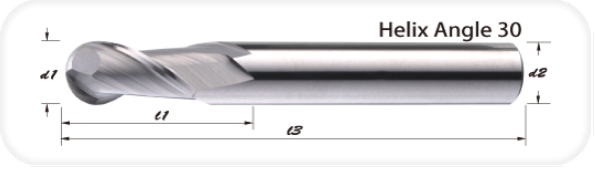

| Type No. | Diameter | Flute Length | O.A.L. | Shank Dia |
| 型號 | 直徑d1 | 刃長L1 | 全長L3 | 柄徑d2 |
| P6AB-0102 | R0.5 | 2 | 50 | 4 |
| P6AB-0152 | R0.75 | 3 | 50 | 4 |
| P6AB-0202 | R1 | 4 | 50 | 4 |
| P6AB-0252 | R1.25 | 5 | 50 | 4 |
| P6AB-0302 | R1.5 | 6 | 50 | 4 |
| P6AB-0352 | R1.75 | 7 | 50 | 4 |
| P6AB-0402 | R2 | 8 | 50 | 4 |
| P6AB-0452 | R2.25 | 9 | 50 | 6 |
| P6AB-0502 | R2.5 | 10 | 50 | 6 |
| P6AB-0552 | R2.75 | 11 | 50 | 6 |
| P6AB-0602 | R3 | 12 | 50 | 6 |
| P6AB-0702 | R3.5 | 14 | 50 | 8 |
| P6AB-0802 | R4 | 16 | 60 | 8 |
| P6AB-0902 | R4.5 | 18 | 75 | 10 |
| P6AB-1002 | R5 | 20 | 75 | 10 |
| P6AB-1102 | R5.5 | 22 | 75 | 12 |
| P6AB-1202 | R6 | 24 | 75 | 12 |
| unit: mm | ||||
