Long Shank Ball Nose End Mills-2 Flute
G4B75L-2T - Ball Nose
- Application
- Scope of application: Plastic mold、forging mold、casting mold、sheet metal mold、vehicle parts and various industrial parts.
- Applicable materials: Mold steel、alloy steel、tool steel、heat-treated steel and soldering steel.
- Main features: The ball end mill is mainly used for fine milling and cutting curved surfaces. The superfine particle tungsten carbide base metal can make high-speed cutting on the high-speed M/C, and can process parts with hardness less than HRC 60.
Spec.

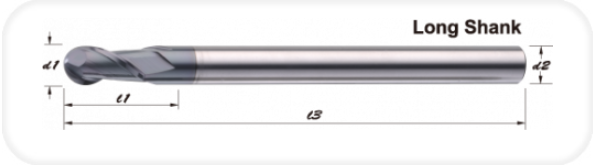

| Type No. | Diameter | Flute Length | O.A.L. | Shank Dia |
| 型號 | 直徑d1 | 刃長L1 | 全長L3 | 柄徑d2 |
| G4B75L-0102 | R0.5 | 2 | 75 | 6 |
| G4B75L-0152 | R0.75 | 3 | 75 | 6 |
| G4B75L-0202 | R1 | 4 | 75 | 6 |
| G4B75L-0252 | R1.25 | 5 | 75 | 6 |
| G4B75L-0302 | R1.5 | 6 | 75 | 6 |
| G4B75L-0352 | R1.75 | 7 | 75 | 6 |
| G4B75L-0402 | R2 | 8 | 75 | 6 |
| G4B75L-0452 | R2.25 | 9 | 75 | 6 |
| G4B75L-0502 | R2.5 | 10 | 75 | 6 |
| G4B75L-0552 | R2.75 | 11 | 75 | 6 |
| G4B75L-0602 | R3 | 12 | 75 | 6 |
| G4B75L-0702 | R3.5 | 14 | 75 | 6 |
| G4B75L-0802 | R4 | 16 | 75 | 8 |
| unit: mm | ||||
