Corner Radius End Mills-4 Flute

V2R-4T-NB - Corner Radius

Application
Scope of application: Plastic mold、forging mold、casting mold、electronic components、clock parts and other precision parts.
Applicable materials: Mold steel、alloy steel、tool steel、heat-treated steel and soldering steel.
Main features: The cutting edge made of nano-particle tungsten carbide and with corner radius is hard to crack and can be used to make a little high-speed groove milling. Steels whose hardness is within HRC 65 can be cut at high speed on the M/C (High Speed Machining Centers). It can clear corners or make high-speed milling on curved surfaces instead of the small diameter ball end mill so as to increase the processing efficiency of molds. The 4-flute structure design can increase the feed speed of tool, and can better give its high-speed cutting efficiency, the combinations of square and ball nose end mills, It is most used for corner radius for molding and demold easier.

Spec.

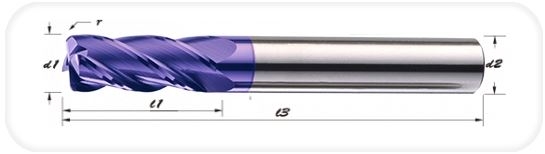

Type No. Diameter Corner R Flute Length O.A.L. Shank Dia
型號 直徑d1 R角r 刃長L1 全長L3 柄徑d2
V2R-06034-NB 6 0.3 15 50 6
V2R-06054-NB 6 0.5 15 50 6
V2R-06104-NB 6 1 15 50 6
V2R-08034-NB 8 0.3 20 60 8
V2R-08054-NB 8 0.5 20 60 8
V2R-08104-NB 8 1 20 60 8
V2R-10054-NB 10 0.5 25 75 10
V2R-10104-NB 10 1 25 75 10
V2R-10154-NB 10 1.5 25 75 10
V2R-10204-NB 10 2 25 75 10
V2R-10304-NB 10 3 25 75 10
V2R-12054-NB 12 0.5 30 75 12
V2R-12104-NB 12 1 30 75 12
V2R-12154-NB 12 1.5 30 75 12
V2R-12204-NB 12 2 30 75 12
V2R-12304-NB 12 3 30 75 12
V2R-16104-NB 16 1 40 100 16
V2R-16204-NB 16 2 40 100 16
V2R-16304-NB 16 3 40 100 16
unit: mm
