Square End Mills-4 Flute
V2E-4T-NB - Square
- Application
- Scope of application: Plastic mold、forging mold、casting mold、electronic components、clock parts and other precision parts.
- Applicable materials: Mold steel、alloy steel、tool steel、heat-treated steel and soldering steel.
- Main features: The nano-particle tungsten carbide base metal is designed to make high-speed cutting on the high-speed M/C, and can process parts with hardness less than HRC65. The 4-flute end mill is mainly used for fine cutting. The low torque can make high-speed cutting. The 4-flute design can reduce tool wear when a work piece needs to be cut for a long time so that the dimensional accuracy of the work piece can be increased, 4 flute especial design of one flute across center.
Spec.

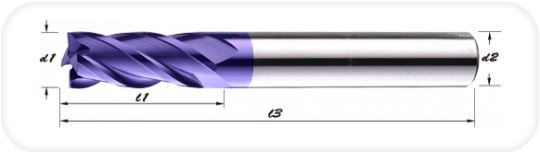

| Type No. | Diameter | Flute Length | O.A.L. | Shank Dia |
|---|---|---|---|---|
| 型號 | 直徑d1 | 刃長L1 | 全長L3 | 柄徑d2 |
| V2E-0104-NB | 1 | 3 | 50 | 4 |
| V2E-0154-NB | 1.5 | 4 | 50 | 4 |
| V2E-0204-NB | 2 | 6 | 50 | 4 |
| V2E-0254-NB | 2.5 | 8 | 50 | 4 |
| V2E-0304-NB | 3 | 8 | 50 | 4 |
| V2E-0354-NB | 3.5 | 10 | 50 | 4 |
| V2E-0404-NB | 4 | 11 | 50 | 4 |
| V2E-0454-NB | 4.5 | 13 | 50 | 6 |
| V2E-0504-NB | 5 | 13 | 50 | 6 |
| V2E-0554-NB | 5.5 | 13 | 50 | 6 |
| V2E-0604-NB | 6 | 15 | 50 | 6 |
| V2E-0654-NB | 6.5 | 20 | 60 | 8 |
| V2E-0704-NB | 7 | 20 | 60 | 8 |
| V2E-0754-NB | 7.5 | 20 | 60 | 8 |
| V2E-0804-NB | 8 | 20 | 60 | 8 |
| V2E-0854-NB | 8.5 | 25 | 75 | 10 |
| V2E-0904-NB | 9 | 25 | 75 | 10 |
| V2E-0954-NB | 9.5 | 25 | 75 | 10 |
| V2E-1004-NB | 10 | 25 | 75 | 10 |
| V2E-1104-NB | 11 | 30 | 75 | 12 |
| V2E-1154-NB | 11.5 | 30 | 75 | 12 |
| V2E-1204-NB | 12 | 30 | 75 | 12 |
| V2E-1404-NB | 14 | 40 | 100 | 16 |
| V2E-1604-NB | 16 | 40 | 100 | 16 |
| V2E-1804-NB | 18 | 45 | 100 | 20 |
| V2E-2004-NB | 20 | 45 | 100 | 20 |
| unit: mm | ||||
