Ball Nose End Mills-2 Flute
V2B-2T-NB - Ball Nose
- Application
- Scope of application : Precision mold、electronic components、clock parts and other precision parts.
- Applicable materials : Carbon steel、mold steel、alloy steel、tool steel、stainless steel、titanium alloy and copper and aluminum alloy.
- Main features : The nano-particle tungsten carbide base metal is designed to make high-speed and high-hardness cutting on the high-speed M/C and can process parts with hardness less than HRC65. The micro ball cutter is widely used in photoelectric industry and for locally clearing corners of molds, it is most used for engraving and wipe out the burr.
Spec.

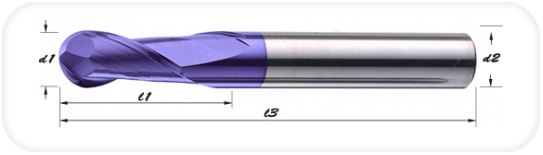

| Type No. | Diameter | Flute Length | O.A.L. | Shank Dia |
|---|---|---|---|---|
| 型號 | 直徑d1 | 刃長L1 | 全長L3 | 柄徑d2 |
| V2B-0102-NB | R0.5 | 2 | 50 | 4 |
| V2B-0152-NB | R0.75 | 3 | 50 | 4 |
| V2B-0202-NB | R1 | 4 | 50 | 4 |
| V2B-0252-NB | R1.25 | 5 | 50 | 4 |
| V2B-0302-NB | R1.5 | 6 | 50 | 4 |
| V2B-0352-NB | R1.75 | 7 | 50 | 4 |
| V2B-0402-NB | R2 | 8 | 50 | 4 |
| V2B-0452-NB | R2.25 | 9 | 50 | 6 |
| V2B-0502-NB | R2.5 | 10 | 50 | 6 |
| V2B-0552-NB | R2.75 | 11 | 50 | 6 |
| V2B-0602-NB | R3 | 12 | 50 | 6 |
| V2B-0702-NB | R3.5 | 14 | 60 | 8 |
| V2B-0802-NB | R4 | 16 | 60 | 8 |
| V2B-0902-NB | R4.5 | 18 | 75 | 10 |
| V2B-1002-NB | R5 | 20 | 75 | 10 |
| V2B-1102-NB | R5.5 | 22 | 75 | 12 |
| V2B-1202-NB | R6 | 24 | 75 | 12 |
| V2B-1402-NB | R7 | 28 | 100 | 16 |
| V2B-1602-NB | R8 | 32 | 100 | 16 |
| V2B-1802-NB | R9 | 36 | 100 | 20 |
| V2B-2002-NB | R10 | 40 | 100 | 20 |
| unit: mm | ||||
