Corner Radius End Mills-4 Flute

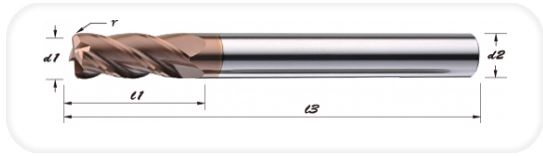

V2R-4T - Corner Radius
Spec.
| Type No. | Diameter | Corner R | Flute Length | O.A.L. | Shank Dia |
|---|---|---|---|---|---|
| 型號 | 直徑d1 | R角r | 刃長L1 | 全長L3 | 柄徑d2 |
| V2R-06034 | 6 | 0.3 | 15 | 50 | 6 |
| V2R-06054 | 6 | 0.5 | 15 | 50 | 6 |
| V2R-06104 | 6 | 1 | 15 | 50 | 6 |
| V2R-08034 | 8 | 0.3 | 20 | 60 | 8 |
| V2R-08054 | 8 | 0.5 | 20 | 60 | 8 |
| V2R-08104 | 8 | 1 | 20 | 60 | 8 |
| V2R-10054 | 10 | 0.5 | 25 | 75 | 10 |
| V2R-10104 | 10 | 1 | 25 | 75 | 10 |
| V2R-10154 | 10 | 1.5 | 25 | 75 | 10 |
| V2R-10204 | 10 | 2 | 25 | 75 | 10 |
| V2R-10304 | 10 | 3 | 25 | 75 | 10 |
| V2R-12054 | 12 | 0.5 | 30 | 75 | 12 |
| V2R-12104 | 12 | 1 | 30 | 75 | 12 |
| V2R-12154 | 12 | 1.5 | 30 | 75 | 12 |
| V2R-12204 | 12 | 2 | 30 | 75 | 12 |
| V2R-12304 | 12 | 3 | 30 | 75 | 12 |
| V2R-16104 | 16 | 1 | 40 | 100 | 16 |
| V2R-16204 | 16 | 2 | 40 | 100 | 16 |
| V2R-16304 | 16 | 3 | 40 | 100 | 16 |
| unit: mm | |||||
