Carbide Engraving Semicircle Double End Rod

P6EO - Carbide Engraving Rod

Scope of application: Plastic mold、forging mold、casting mold、electronic components、clock parts and other precision parts.
Applicable materials: Mold steel、alloy steel、tool steel、heat-treated steel and soldering steel.
Main features: The cutting edge made of nano-particle tungsten carbide and with corner radius is hard to crack and can be used to make a little high-speed groove milling. Steels whose hardness is within HRC 65 can be cut at high speed on the M/C (High Speed Machining Centers). It can clear corners or make high-speed milling on curved surfaces instead of the small diameter ball end mill so as to increase the processing efficiency of molds. The 4-flute structure design can increase the feed speed of tool, and can better give its high-speed cutting efficiency, the combinations of square and ball nose end mills, It is most used for corner radius for molding and demold easier.

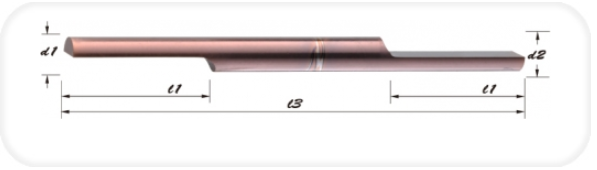

Type No.            Diameter       Flute Length O.A.L. Shank Dia
型號 直徑d1 刃長L1 全長L3 柄徑d2
P6EO-0402 2 15 50 4
P6EO-0602 3 15 50 6
P6EO-0802 4 18 60 8
P6EO-1002 5 20 75 10
unit: mm
