Long Flute Square End Mills-2 Flute
P6FE-2T - Square
- Application
- Scope of application : Plastic mold、forging mold、casting mold、sheet metal mold、vehicle parts and various industrial parts.
- Applicable materials : Mold steel、alloy steel、tool steel、cast iron and soldering steel.
- Main features : The 2-flute end mill is mainly used for cutting grooves. Compared to the 4-flute end mill, the 2-flute end mill is better for cutting the roughness of the machining face of the spot-faced holes, and the bore diameter is not easy to expand.
Spec.

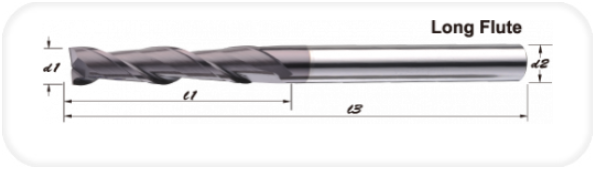

| Type No. | Diameter | Flute Length | O.A.L. | Shank Dia |
| 型號 | 直徑d1 | 刃長L1 | 全長L3 | 柄徑d2 |
| P6FE-0102 | 1 | 7 | 50 | 4 |
| P6FE-0152 | 1.5 | 9 | 50 | 4 |
| P6FE-0202 | 2 | 12 | 50 | 4 |
| P6FE-0252 | 2.5 | 12 | 50 | 4 |
| P6FE-0302 | 3 | 15 | 60 | 6 |
| P6FE-0452 | 3.5 | 15 | 60 | 6 |
| P6FE-0402 | 4 | 20 | 75 | 6 |
| P6FE-0452 | 4.5 | 20 | 75 | 6 |
| P6FE-0502 | 5 | 25 | 75 | 6 |
| P6FE-0552 | 5.5 | 25 | 75 | 6 |
| P6FE-0602 | 6 | 30 | 75 | 6 |
| P6FE-0702 | 7 | 30 | 100 | 8 |
| P6FE-0802 | 8 | 40 | 100 | 8 |
| P6FE-0902 | 9 | 40 | 100 | 10 |
| P6FE-1002 | 10 | 40 | 100 | 10 |
| P6FE-1102 | 11 | 40 | 100 | 12 |
| P6FE-1202 | 12 | 50 | 100 | 12 |
| P6FE-1402 | 14 | 50 | 150 | 16 |
| P6FE-1602 | 16 | 60 | 150 | 16 |
| P6FE-2002 | 20 | 90 | 200 | 20 |
| unit: mm | ||||
