Shank 6 Square End Mills-4 Flute
P6E6D-4T - Square
- Application
- Scope of application : Plastic mold、forging mold、casting mold、sheet metal mold、vehicle parts and various industrial parts.
- Applicable materials : Mold steel、alloy steel、tool steel、cast iron and soldering steel.
- Main features : The 4-flute end mill is mainly used for lateral fine cutting. It is suggested that steels with hardness less than HRC55 should be cut. The 4-flute design can reduce tool wear when a work piece needs to be cut for a long time so that the dimensional accuracy of the work piece can be increased.
Spec.

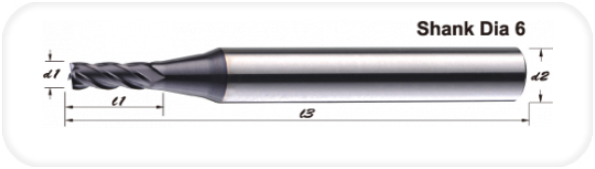

| Type No. | Diameter | Flute Length | O.A.L. | Shank Dia |
| 型號 | 直徑d1 | 刃長L1 | 全長L3 | 柄徑d2 |
| P6E3D-0104 | 1 | 3 | 50 | 6 |
| P6E3D-0154 | 1.5 | 4 | 50 | 6 |
| P6E3D-0204 | 2 | 6 | 50 | 6 |
| P6E3D-0254 | 2.5 | 8 | 50 | 6 |
| P6E3D-0304 | 3 | 8 | 50 | 6 |
| P6E3D-0354 | 3.5 | 10 | 50 | 6 |
| P6E3D-0404 | 4 | 11 | 50 | 6 |
| unit: mm | ||||
