Long Shank Square End Mills-4T

P6E150L-4T - Square

Scope of application : Plastic mold、forging mold、casting mold、sheet metal mold、 vehicle parts and various industrial parts.
Applicable materials : Carbon steel、mold steel、alloy steel、tool steel and cast iron.
Main features : The 4-flute end mill is mainly used for lateral fine cutting. It is suggested that steels with hardness less than HRC 50 should be cut. The low torque can make high-speed cutting. The 4-flute design can reduce tool wear when a work piece needs to be cut for a long time so that the dimensional accuracy of the work piece can be increased.

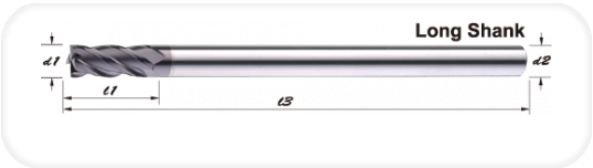

Type No. Diameter Flute Length O.A.L. Shank Dia
型號 直徑d1 刃長L1 全長L3 柄徑d2
P6E150L-0604 6 16 100 6
P6E150L-0804 8 20 100 8
P6E150L-1004 10 25 100 10
P6E150L-1404 12 30 100 12
P6E150L-1604 16 40 150 16
unit: mm
