Square End Mills-2 Flute
V2E-2T-XC - Square
- Application
- Scope of application: Plastic mold、forging mold、casting mold、electronic components、clock parts and other precision parts.
- Applicable materials: Mold steel、alloy steel、tool steel、heat-treated steel and soldering steel.
- Main features: The nano-particle tungsten carbide base metal is designed to make high-speed cutting on the high-speed M/C, and can process parts with hardness less than HRC65. The 4-flute end mill is mainly used for fine cutting. The low torque can make high-speed cutting. The 4-flute design can reduce tool wear when a work piece needs to be cut for a long time so that the dimensional accuracy of the work piece can be increased, 4 flute especial design of one flute across center.
Spec.

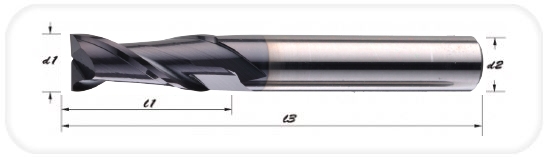

| Type No. | Diameter | Flute Length | O.A.L. | Shank Dia |
|---|---|---|---|---|
| 型號 | 直徑d1 | 刃長L1 | 全長L3 | 柄徑d2 |
| V2E-0102-XC | 1 | 3 | 50 | 4 |
| V2E-0152-XC | 1.5 | 4 | 50 | 4 |
| V2E-0202-XC | 2 | 6 | 50 | 4 |
| V2E-0252-XC | 2.5 | 8 | 50 | 4 |
| V2E-0302-XC | 3 | 8 | 50 | 4 |
| V2E-0352-XC | 3.5 | 10 | 50 | 4 |
| V2E-0402-XC | 4 | 11 | 50 | 4 |
| V2E-0452-XC | 4.5 | 13 | 50 | 6 |
| V2E-0502-XC | 5 | 13 | 50 | 6 |
| V2E-0552-XC | 5.5 | 13 | 50 | 6 |
| V2E-0602-XC | 6 | 15 | 50 | 6 |
| V2E-0652-XC | 6.5 | 20 | 60 | 8 |
| V2E-0702-XC | 7 | 20 | 60 | 8 |
| V2E-0752-XC | 7.5 | 20 | 60 | 8 |
| V2E-0802-XC | 8 | 20 | 60 | 8 |
| V2E-0852-XC | 8.5 | 25 | 75 | 10 |
| V2E-0902-XC | 9 | 25 | 75 | 10 |
| V2E-0952-XC | 9.5 | 25 | 75 | 10 |
| V2E-1002-XC | 10 | 25 | 75 | 10 |
| V2E-1102-XC | 11 | 30 | 75 | 12 |
| V2E-1152-XC | 11.5 | 30 | 75 | 12 |
| V2E-1202-XC | 12 | 30 | 75 | 12 |
| V2E-1402-XC | 14 | 40 | 100 | 16 |
| V2E-1602-XC | 16 | 40 | 100 | 16 |
| V2E-1802-XC | 18 | 45 | 100 | 20 |
| V2E-2002-XC | 20 | 45 | 100 | 20 |
| unit: mm | ||||
