Long Shank Square End Mills-2 Flute
P6E100L-2T - Square
- Application
- Scope of application : Plastic mold、forging mold、casting mold、sheet metal mold、 vehicle parts and various industrial parts.
- Applicable materials : Mold steel、alloy steel、tool steel and soldering steel.
- Main features : The superfine particle tungsten carbide base metal is designed to make high-speed cutting on the high-speed M/C. The 2-flute end mill is mainly used for cutting grooves. Compared to the 4-flute end mill, the 2-flute end mill is better for cutting the roughness of the machining face of the spot-faced holes, and the bore diameter is not easy to expand.
Spec.

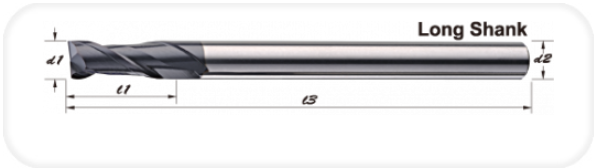

Type No. | Diameter | Flute Length | O.A.L. | Shank Dia |
---|---|---|---|---|
型號 | 直徑d1 | 刃長L1 | 全長L3 | 柄徑d2 |
P6E100L-0402 | 4 | 11 | 100 | 6 |
P6E100L-0502 | 5 | 13 | 100 | 6 |
P6E100L-0602 | 6 | 16 | 100 | 6 |
P6E100L-0802 | 8 | 20 | 100 | 8 |
P6E100L-1002 | 10 | 25 | 100 | 10 |
P6E100L-1202 | 12 | 30 | 100 | 12 |
unit: mm |
