Corner Radius End Mills-4 Flute ZR Especially For Nickel
NR-4T-ZR
- Application
- Scope of application: Plastic mold、forging mold、casting mold、electronic components、clock parts and other precision parts.
- Applicable materials: Nickel alloys、Stainless Steels、heat-treated steel and soldering steel.
- Main features : The superfine particle tungsten carbide base metal can make high-speed cutting on the high-speed M/C, and can process parts with hardness less than HRC60. The cutting edge with corner radius is hard to crack and can make a little high-speed groove milling, and can clear corners or make high-speed milling on curved surfaces instead of the small diameter ball end mill so as to increase the processing efficiency of molds. The 4-flute design can reduce tool wear when a work piece needs to be cut for a long time so that the dimensional accuracy of the work piece can be increased.
Spec.

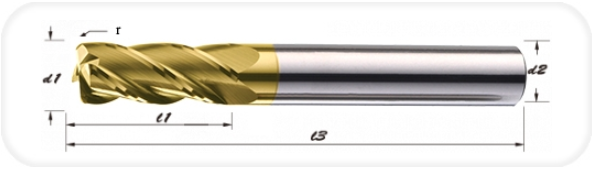

| Type No. | Diameter | Corner R | Flute Length | O.A.L. | Shank Dia |
| 型號 | 直徑d1 | R角r | 刃長L1 | 全長L3 | 柄徑d2 |
| NR-03034-ZR | 3 | 0.3 | 8 | 50 | 4 |
| NR-03054-ZR | 3 | 0.5 | 8 | 50 | 4 |
| NR-03104-ZR | 3 | 1 | 8 | 50 | 4 |
| NR-04024-ZR | 4 | 0.2 | 10 | 50 | 4 |
| NR-04034-ZR | 4 | 0.3 | 10 | 50 | 4 |
| NR-04054-ZR | 4 | 0.5 | 10 | 50 | 4 |
| NR-04104-ZR | 4 | 1 | 10 | 50 | 4 |
| NR-05034-ZR | 5 | 0.3 | 13 | 50 | 6 |
| NR-05054-ZR | 5 | 0.5 | 13 | 50 | 6 |
| NR-05104-ZR | 5 | 1 | 13 | 50 | 6 |
| NR-06024-ZR | 6 | 0.2 | 15 | 50 | 6 |
| NR-06034-ZR | 6 | 0.3 | 15 | 50 | 6 |
| NR-06054-ZR | 6 | 0.5 | 15 | 50 | 6 |
| NR-06104-ZR | 6 | 1 | 15 | 50 | 6 |
| NR-06204-ZR | 6 | 2 | 15 | 50 | 6 |
| NR-08034-ZR | 8 | 0.3 | 20 | 60 | 8 |
| NR-08054-ZR | 8 | 0.5 | 20 | 60 | 8 |
| NR-08104-ZR | 8 | 1 | 20 | 60 | 8 |
| NR-08204-ZR | 8 | 2 | 20 | 60 | 8 |
| NR-10054-ZR | 10 | 0.5 | 25 | 75 | 10 |
| NR-10104-ZR | 10 | 1 | 25 | 75 | 10 |
| NR-10154-ZR | 10 | 1.5 | 25 | 75 | 10 |
| NR-10204-ZR | 10 | 2 | 25 | 75 | 10 |
| NR-10304-ZR | 10 | 3 | 25 | 75 | 10 |
| NR-12054-ZR | 12 | 0.5 | 30 | 75 | 12 |
| NR-12104-ZR | 12 | 1 | 30 | 75 | 12 |
| NR-12154-ZR | 12 | 1.5 | 30 | 75 | 12 |
| NR-12204-ZR | 12 | 2 | 30 | 75 | 12 |
| NR-12304-ZR | 12 | 3 | 30 | 75 | 12 |
| unit: mm | |||||
