- NQE46-4T-ZR Asymmetric Helix angle - 43°/46°
Asymmetric Helix angle - 43°/46° ZR Especially For Nickel
NQE46-4T-ZR Asymmetric Helix angle - 43°/46°
- Application
- Scope of application: Plastic mold、forging mold、casting mold、electronic components、clock parts and other precision parts.
- Applicable materials: Nickel alloys、Stainless Steels、heat-treated steel and soldering steel.
- Main features: The nano-particle tungsten carbide and spiral shallow groove design of asymmetric helix 43°/46° use for high speed milling, It is suggested that steels with hardness less than HRC60 should make lateral fine milling and cutting on the M/C miller. Its cutting efficiency is more than 6 times of typical end mills.
Spec.

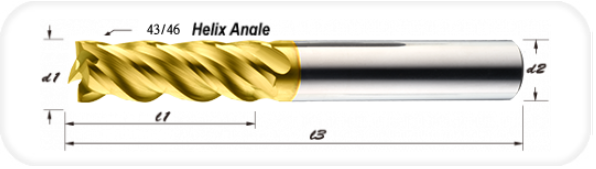

| Type No. | Diameter | Flute Length | O.A.L. | Shank Dia |
| 型號 | 直徑d1 | 刃長L1 | 全長L3 | 柄徑d2 |
| NQE46-0604-ZR | 6 | 15 | 50 | 6 |
| NQE46-0804-ZR | 8 | 20 | 60 | 8 |
| NQE46-1004-ZR | 10 | 25 | 75 | 10 |
| NQE46-1204-ZR | 12 | 30 | 75 | 12 |
| NQE46-1604-ZR | 16 | 40 | 100 | 16 |
| NQE46-2004-ZR | 20 | 40 | 100 | 20 |
| unit: mm | ||||
