CoCrMo Medical Ball Nose End Mills-4 Flute ZR
CCMB-4T-ZR
- Application
- Scope of application: Medical mould, hip joint, cobalt chromium-molybdenum related parts, electronic parts, watch parts and other precision parts.
- Applicable materials: Cobalt chromium molybdenum, nickel-based, titanium alloy, stainless steel, die steel, alloy steel, tool steel, hard working materials and low thermal conductivity base material.
- Main features: The ball end mill is mainly used for fine milling and cutting curved surfaces. The superfine particle tungsten carbide base metal can make high-speed cutting on the high-speed M/C, and can process parts with hardness less than HRC 60.
Spec.

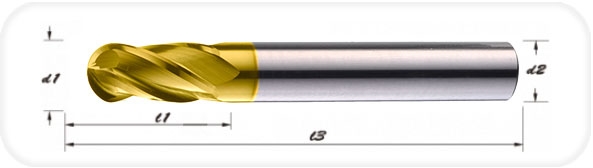

| Type No. | Diameter | Flute Length | O.A.L. | Shank Dia |
| 型號 | 直徑d1 | 刃長L1 | 全長L3 | 柄徑d2 |
| CCMB-0104-ZR | R0.5 | 2 | 50 | 4 |
| CCMB-0154-ZR | R0.75 | 3 | 50 | 4 |
| CCMB-0204-ZR | R1 | 4 | 50 | 4 |
| CCMB-0254-ZR | R1.25 | 5 | 50 | 4 |
| CCMB-0304-ZR | R1.5 | 6 | 50 | 4 |
| CCMB-0354-ZR | R1.75 | 7 | 50 | 4 |
| CCMB-0404-ZR | R2 | 8 | 50 | 4 |
| CCMB-0504-ZR | R2.5 | 10 | 50 | 6 |
| CCMB-0604-ZR | R3 | 12 | 50 | 6 |
| CCMB-0804-ZR | R4 | 16 | 60 | 8 |
| CCMB-1004-ZR | R5 | 20 | 73 | 10 |
| CCMB-1204-ZR | R6 | 24 | 74 | 12 |
| CCMB-1404-ZR | R7 | 28 | 93 | 16 |
| CCMB-1604-ZR | R8 | 32 | 93 | 16 |
| CCMB-1804-ZR | R9 | 36 | 93 | 20 |
| CCMB-2004-ZR | R10 | 40 | 93 | 20 |
| unit: mm | ||||
