WK
Thread Mills - Spiral Flute
- Application
- Uncoating
- Coating TICN
- HRC 58
- Up to Shank diameter 6 can choose internal cooling.

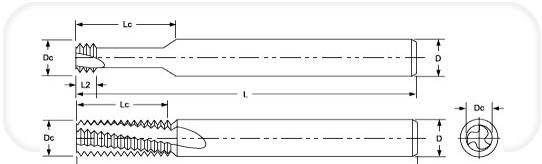

Type no. | Nominal Size | N. D. | Pitch | Drill Size | Diameter Dc | Shank Dia. | O.A.L. | Flute Length Lc |
型號 | 規格 | 公稱直徑 | 牙距 | 下孔徑 | 刃徑 | 柄徑 | 總長 | 刃長 |
WKS01045004M0.3 | M1.4*0.3 | 1.4 | 0.3 | 1.1 | 1 | 4 | 50 | 4 |
WKS1.145004M0.35 | M1.6*0.35 | 1.6 | 0.35 | 1.25 | 1.1 | 4 | 50 | 4 |
WKS1.5045005M0.4 | M2*0.4 | 2 | 0.4 | 1.6 | 1.5 | 4 | 50 | 5 |
WKS1.9045006M0.45 | M2.5*0.45 | 2.5 | 0.45 | 2.05 | 1.9 | 4 | 50 | 6 |
WKS2.3045007M0.5 | M3*0.5 | 3 | 0.5 | 2.5 | 2.3 | 4 | 50 | 7 |
WKS2.7045008M0.6 | M3.5*0.6 | 3.5 | 0.6 | 2.9 | 2.7 | 4 | 50 | 8 |
WKS0305010M0.7 | M4*0.7 | 4 | 0.7 | 3.3 | 3 | 4 | 50 | 10 |
WKS04045012M0.8 | M5*0.8 | 5 | 0.8 | 4.2 | 4 | 4 | 50 | 12 |
WKS4.6066012M0.75 | M6*0.75 | 6 | 0.75 | 5.25 | 4.6 | 6 | 60 | 12 |
WKS4.6066012M1 | M6*1 | 6 | 1 | 5 | 4.6 | 6 | 60 | 12 |
WKS06066016M0.75 | M8*0.75 | 8 | 0.75 | 7.25 | 6 | 6 | 60 | 16 |
WKS06066016M1.25 | M8*1.25 | 8 | 1.25 | 6.75 | 6 | 6 | 60 | 16 |
WKS06066016M1.0 | M8*1 | 8 | 1 | 7 | 6 | 6 | 60 | 16 |
WKS07087520M1.5 | M10*1.5 | 10 | 1.5 | 8.5 | 8 | 8 | 75 | 20 |
WKS07087520M1.25 | M10*1.25 | 10 | 1.25 | 8.75 | 8 | 8 | 75 | 20 |
WKS07087520M1.0 | M10*1 | 10 | 1 | 9 | 8 | 8 | 75 | 20 |
WKS07087520M0.75 | M10*0.75 | 10 | 0.75 | 9.25 | 8 | 8 | 75 | 20 |
WKS08087520M1.75 | M12*1.75 | 12 | 1.75 | 10.25 | 8 | 8 | 75 | 20 |
WKS08087520M1.5 | M12*1.5 | 12 | 1.5 | 10.5 | 8 | 8 | 75 | 20 |
WKS08087520M1.25 | M12*1.25 | 12 | 1.25 | 10.75 | 8 | 8 | 75 | 20 |
WKS08087520M1 | M12*1 | 12 | 1 | 11 | 8 | 8 | 75 | 20 |
WKS08087520M0.75 | M12*0.75 | 12 | 0.75 | 11.25 | 8 | 8 | 75 | 20 |
WKS10107520M2 | M14*2 | 14 | 2 | 12 | 10 | 10 | 75 | 20 |
WKS10107520M1.5 | M14*1.5 | 14 | 1.5 | 12.5 | 10 | 10 | 75 | 20 |
WKS10107520M1.25 | M14*1.25 | 14 | 1.25 | 12.75 | 10 | 10 | 75 | 20 |
WKS10107520M1 | M14*1 | 14 | 1 | 13 | 10 | 10 | 75 | 20 |
WKS12127525M2.0 | M16*2 | 16 | 2 | 14 | 12 | 12 | 75 | 25 |
WKS12127525M1.5 | M16*1.5 | 16 | 1.5 | 14.5 | 12 | 12 | 75 | 25 |
WKS12127525M1.25 | M16*1.25 | 16 | 1.25 | 14.75 | 12 | 12 | 75 | 25 |
WKS12127525M1.0 | M16*1 | 16 | 1 | 15 | 12 | 12 | 75 | 25 |
WKS121210030M2.0 | M16*2 | 16 | 2 | 14 | 12 | 12 | 100 | 30 |
WKS121210030M1.5 | M16*1.5 | 16 | 1.5 | 14.5 | 12 | 12 | 100 | 30 |
WKS121210030M1.25 | M16*1.25 | 16 | 1.25 | 14.75 | 12 | 12 | 100 | 30 |
WKS121210030M1.0 | M16*1 | 16 | 1 | 15 | 12 | 12 | 100 | 30 |
WKS161610030M3 | M20*3 | 20 | 3 | 17 | 16 | 16 | 100 | 30 |
WKS161610030M2.5 | M20*2.5 | 20 | 2.5 | 17.5 | 16 | 16 | 100 | 30 |
WKS161610030M2.0 | M20*2 | 20 | 2 | 18 | 16 | 16 | 100 | 30 |
WKS161610030M1.5 | M20*1.5 | 20 | 1.5 | 18.5 | 16 | 16 | 100 | 30 |
WKS202010030M3.0 | M24*3 | 24 | 3 | 21 | 20 | 20 | 100 | 30 |
WKS202010030M3.5 | M27*3.5 | 27 | 3.5 | 23.5 | 20 | 20 | 100 | 30 |
