DKD6030~6200
DKD6030~6200

Tungsten Carbide Coated Drill(Internal Coolant)MILLING HOLDER 6XD

DOD - 6030~6200 Internal Coolant 6XD

Application
Internal Coolant
General steel, Alloy steel, Mold steel, Stainless Steel, Copper, Aluminum, Cast iron.

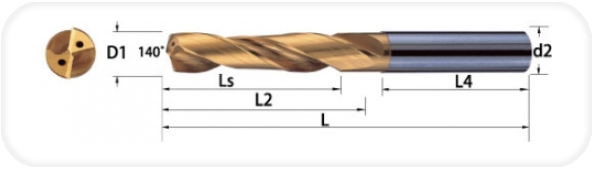

Type No.            D1 d2 L2 L L4 Ls
DOD-6030 3 3 24 58 32 19
DOD-6031 3.1 4 28 64 34 21
DOD-6032 3.2
DOD-6033 3.3
DOD-6034 3.4
DOD-6035 3.5
DOD-6036 3.6 4 30 66 34 24
DOD-6037 3.7
DOD-6038 3.8
DOD-6039 3.9
DOD-6040 4
DOD-6041 4.1 5 38 76 36 30
DOD-6042 4.2
DOD-6043 4.3
DOD-6044 4.4
DOD-6045 4.5
DOD-6046 4.6
DOD-6047 4.7
DOD-6048 4.8
DOD-6049 4.9
DOD-6050 5
DOD-6051 5.1 6 45 83 36 36
DOD-6052 5.2
DOD-6053 5.3
DOD-6054 5.4
DOD-6055 5.5
DOD-6056 5.6
DOD-6057 5.7
DOD-6058 5.8
DOD-6059 5.9
DOD-6060 6
DOD-6061 6.1 7 52 90 36 42
DOD-6062 6.2
DOD-6063 6.3
DOD-6064 6.4
DOD-6065 6.5
DOD-6066 6.6
DOD-6067 6.7
DOD-6068 6.8
DOD-6069 6.9
DOD-6070 7
DOD-6071 7.1 8 60 98 36 48
DOD-6072 7.2
DOD-6073 7.3
DOD-6074 7.4
DOD-6075 7.5
DOD-6076 7.6
DOD-6077 7.7
DOD-6078 7.8
DOD-6079 7.9
DOD-6080 8
Type No.            D1 d2 L2 L L4 Ls
DOD-6081 8.1 9 66 108 40 54
DOD-6082 8.2
DOD-6083 8.3
DOD-6084 8.4
DOD-6085 8.5
DOD-6086 8.6
DOD-6087 8.7
DOD-6088 8.8
DOD-6089 8.9
DOD-6090 9
DOD-6091 9.1 10 75 117 40 60
DOD-6092 9.2
DOD-6093 9.3
DOD-6094 9.4
DOD-6095 9.5
DOD-6096 9.6
DOD-6097 9.7
DOD-6098 9.8
DOD-6099 9.9
DOD-6100 10
DOD-6101 10.1 11 83 130 45 67
DOD-6102 10.2
DOD-6103 10.3
DOD-6104 10.4
DOD-6105 10.5
DOD-6106 10.6
DOD-6107 10.7
DOD-6108 10.8
DOD-6109 10.9
DOD-6110 11
DOD-6111 11.1 12 90 137 45 72
DOD-6112 11.2
DOD-6113 11.3
DOD-6114 11.4
DOD-6115 11.5
DOD-6116 11.6
DOD-6117 11.7
DOD-6118 11.8
DOD-6119 11.9
DOD-6120 12
DOD-6121 12.1 13 98 145 45 78
DOD-6122 12.2
DOD-6123 12.3
DOD-6124 12.4
DOD-6125 12.5
DOD-6126 12.6
DOD-6127 12.7
DOD-6128 12.8
DOD-6129 12.9
DOD-6130 13
Type No.            D1 d2 L2 L L4 Ls
DOD-6131 13.1 14 105 152 45 85
DOD-6132 13.2
DOD-6133 13.3
DOD-6134 13.4
DOD-6135 13.5
DOD-6136 13.6
DOD-6137 13.7
DOD-6138 13.8
DOD-6139 13.9
DOD-6140 14
DOD-6141 14.1 15 115 165 48 95
DOD-6142 14.2
DOD-6143 14.3
DOD-6144 14.4
DOD-6145 14.5
DOD-6146 14.6
DOD-6147 14.7
DOD-6148 14.8
DOD-6149 14.9
DOD-6150 15
DOD-6155 15.5 16 115 165 48 95
DOD-6160 16
DOD-6165 16.5 17 130 180 48 105
DOD-6170 17
DOD-6175 17.5 18 130 180 48 105
DOD-6180 18
DOD-6185 18.5 19 150 202 50 120
DOD-6190 19
DOD-6195 19.5 20 150 202 50 120
DOD-6200 20
