Tungsten Carbide Coated Drill(Internal Coolant)MILLING HOLDER 4XD

DOD - 4030~4200 Internal Coolant 4XD

Application
Internal Coolant
General steel, Alloy steel, Mold steel, Stainless Steel, Copper, Aluminum, Cast iron.

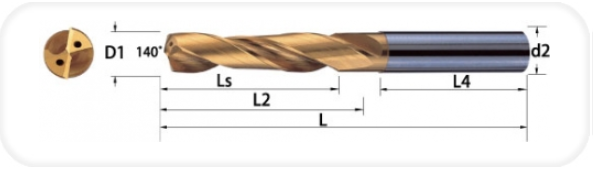

Type No.            D1 d2 L2 L L4 Ls
DOD-4030 3 3 18 52 32 13
DOD-4031 3.1 4 20 56 34 15
DOD-4032 3.2
DOD-4033 3.3
DOD-4034 3.4
DOD-4035 3.5
DOD-4036 3.6 4 22 58 34 16
DOD-4037 3.7
DOD-4038 3.8
DOD-4039 3.9
DOD-4040 4
DOD-4041 4.1 5 28 66 36 20
DOD-4042 4.2
DOD-4043 4.3
DOD-4044 4.4
DOD-4045 4.5
DOD-4046 4.6
DOD-4047 4.7
DOD-4048 4.8
DOD-4049 4.9
DOD-4050 5
DOD-4051 5.1 6 34 72 36 25
DOD-4052 5.2
DOD-4053 5.3
DOD-4054 5.4
DOD-4055 5.5
DOD-4056 5.6
DOD-4057 5.7
DOD-4058 5.8
DOD-4059 5.9
DOD-4060 6
DOD-4061 6.1 7 38 76 36 28
DOD-4062 6.2
DOD-4063 6.3
DOD-4064 6.4
DOD-4065 6.5
DOD-4066 6.6
DOD-4067 6.7
DOD-4068 6.8
DOD-4069 6.9
DOD-4070 7
DOD-4071 7.1 8 44 82 36 32
DOD-4072 7.2
DOD-4073 7.3
DOD-4074 7.4
DOD-4075 7.5
DOD-4076 7.6
DOD-4077 7.7
DOD-4078 7.8
DOD-4079 7.9
DOD-4080 8
Type No.            D1 d2 L2 L L4 Ls
DOD-4081 8.1 9 50 92 40 38
DOD-4082 8.2
DOD-4083 8.3
DOD-4084 8.4
DOD-4085 8.5
DOD-4086 8.6
DOD-4087 8.7
DOD-4088 8.8
DOD-4089 8.9
DOD-4090 9
DOD-4091 9.1 10 58 100 40 43
DOD-4092 9.2
DOD-4093 9.3
DOD-4094 9.4
DOD-4095 9.5
DOD-4096 9.6
DOD-4097 9.7
DOD-4098 9.8
DOD-4099 9.9
DOD-4100 10
DOD-4101 10.1 11 60 107 45 45
DOD-4102 10.2
DOD-4103 10.3
DOD-4104 10.4
DOD-4105 10.5
DOD-4106 10.6
DOD-4107 10.7
DOD-4108 10.8
DOD-4109 10.9
DOD-4110 11
DOD-4111 11.1 12 63 110 45 47
DOD-4112 11.2
DOD-4113 11.3
DOD-4114 11.4
DOD-4115 11.5
DOD-4116 11.6
DOD-4117 11.7
DOD-4118 11.8
DOD-4119 11.9
DOD-4120 12
DOD-4121 12.1 13 71 118 45 54
DOD-4122 12.2
DOD-4123 12.3
DOD-4124 12.4
DOD-4125 12.5
DOD-4126 12.6
DOD-4127 12.7
DOD-4128 12.8
DOD-4129 12.9
DOD-4130 13
Type No.            D1 d2 L2 L L4 Ls
DOD-4131 13.1 14 77 124 45 58
DOD-4132 13.2
DOD-4133 13.3
DOD-4134 13.4
DOD-4135 13.5
DOD-4136 13.6
DOD-4137 13.7
DOD-4138 13.8
DOD-4139 13.9
DOD-4140 14
DOD-4141 14.1 15 83 133 48 63
DOD-4142 14.2
DOD-4143 14.3
DOD-4144 14.4
DOD-4145 14.5
DOD-4146 14.6
DOD-4147 14.7
DOD-4148 14.8
DOD-4149 14.9
DOD-4150 15
DOD-4155 15.5 16 83 133 48 63
DOD-4160 16
DOD-4165 16.5 17 93 143 48 71
DOD-4170 17
DOD-4175 17.5 18 93 143 48 71
DOD-4180 18
DOD-4185 18.5 19 101 153 50 77
DOD-4190 19
DOD-4195 19.5 20 101 153 50 77
DOD-4200 20
