Tungsten Carbide Coated Drill(Internal Coolant)MILLING HOLDER 5XD

DKD - 5031~5200 Internal Coolant 5XD

Application
Internal Coolant
General steel, Alloy steel, Mold steel, Stainless Steel, Copper, Aluminum, Cast iron.

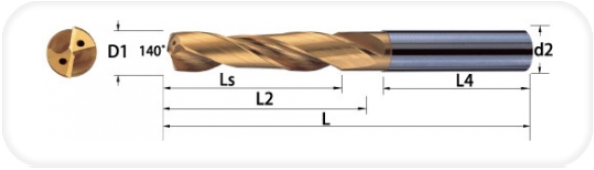

Type No.            D1 d2 L2 L L4 Ls
DKD-8031 3.1 4 34 72 36 29
DKD-8032 3.2
DKD-8033 3.3
DKD-8034 3.4
DKD-8035 3.5
DKD-8036 3.6
DKD-8037 3.7
DKD-8038 3.8 4 43 81 36 36
DKD-8039 3.9
DKD-8040 4
DKD-8041 4.1 6 43 81 36 36
DKD-8042 4.2
DKD-8043 4.3
DKD-8044 4.4
DKD-8045 4.5
DKD-8046 4.6
DKD-8047 4.7
DKD-8048 4.8 6 57 95 36 48
DKD-8049 4.9
DKD-8050 5
DKD-8051 5.1
DKD-8052 5.2
DKD-8053 5.3
DKD-8054 5.4
DKD-8055 5.5
DKD-8056 5.6
DKD-8057 5.7
DKD-8058 5.8
DKD-8059 5.9
DKD-8060 6
DKD-8061 6.1 8 76 114 36 64
DKD-8062 6.2
DKD-8063 6.3
DKD-8064 6.4
DKD-8065 6.5
DKD-8066 6.6
DKD-8067 6.7
DKD-8068 6.8
DKD-8069 6.9
DKD-8070 7
DKD-8071 7.1 8 76 114 36 64
DKD-8072 7.2
DKD-8073 7.3
DKD-8074 7.4
DKD-8075 7.5
DKD-8076 7.6
DKD-8077 7.7
DKD-8078 7.8
DKD-8079 7.9
DKD-8080 8
Type No.            D1 d2 L2 L L4 Ls
DKD-8081 8.1 10 95 142 40 80
DKD-8082 8.2
DKD-8083 8.3
DKD-8084 8.4
DKD-8085 8.5
DKD-8086 8.6
DKD-8087 8.7
DKD-8088 8.8
DKD-8089 8.9
DKD-8090 9
DKD-8091 9.1 10 95 142 40 80
DKD-8092 9.2
DKD-8093 9.3
DKD-8094 9.4
DKD-8095 9.5
DKD-8096 9.6
DKD-8097 9.7
DKD-8098 9.8
DKD-8099 9.9
DKD-8100 10
DKD-8101 10.1 12 114 162 45 96
DKD-8102 10.2
DKD-8103 10.3
DKD-8104 10.4
DKD-8105 10.5
DKD-8106 10.6
DKD-8107 10.7
DKD-8108 10.8
DKD-8109 10.9
DKD-8110 11
DKD-8111 11.1 12 114 162 45 96
DKD-8112 11.2
DKD-8113 11.3
DKD-8114 11.4
DKD-8115 11.5
DKD-8116 11.6
DKD-8117 11.7
DKD-8118 11.8
DKD-8119 11.9
DKD-8120 12
DKD-8121 12.1 14 133 178 45 112
DKD-8122 12.2
DKD-8123 12.3
DKD-8124 12.4
DKD-8125 12.5
DKD-8126 12.6
DKD-8127 12.7
DKD-8128 12.8
DKD-8129 12.9
DKD-8130 13
Type No.            D1 d2 L2 L L4 Ls
DKD-8131 13.1 14 133 178 45 112
DKD-8132 13.2
DKD-8133 13.3
DKD-8134 13.4
DKD-8135 13.5
DKD-8136 13.6
DKD-8137 13.7
DKD-8138 13.8
DKD-8139 13.9
DKD-8140 14
DKD-8141 14.1 16 152 203 48 128
DKD-8142 14.2
DKD-8143 14.3
DKD-8144 14.4
DKD-8145 14.5
DKD-8146 14.6
DKD-8147 14.7
DKD-8148 14.8
DKD-8149 14.9
DKD-8150 15
DKD-8151 15.1 16 152 203 48 128
DKD-8152 15.2
DKD-8153 15.3
DKD-8154 15.4
DKD-8155 15.5
DKD-8156 15.6
DKD-8157 15.7
DKD-8158 15.8
DKD-8159 15.9
DKD-8160 16
DKD-8165 16.5 18 171 222 48 144
DKD-8170 17
DKD-8175 17.5
DKD-8180 18
DKD-8185 18.5 20 190 243 50 160
DKD-8190 19
DKD-8195 19.5
DKD-8200 20
