DKD5031~5200
DKD5031~5200

Tungsten Carbide Coated Drill(Internal Coolant)MILLING HOLDER 5XD

DKD - 5031~5200 Internal Coolant 5XD

Application
Internal Coolant
General steel, Alloy steel, Mold steel, Stainless Steel, Copper, Aluminum, Cast iron.

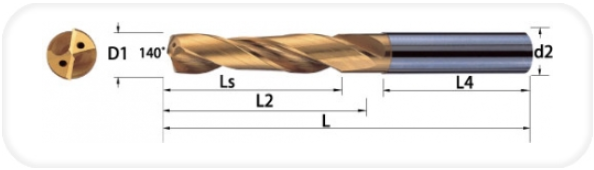

Type No.            D1 d2 L2 L L4 Ls
DKD-5031 3.1 4 28 66 36 23
DKD-5032 3.2
DKD-5033 3.3
DKD-5034 3.4
DKD-5035 3.5
DKD-5036 3.6
DKD-5037 3.7
DKD-5038 3.8 4 36 74 36 29
DKD-5039 3.9
DKD-5040 4
DKD-5041 4.1 6 36 74 36 29
DKD-5042 4.2
DKD-5043 4.3
DKD-5044 4.4
DKD-5045 4.5
DKD-5046 4.6
DKD-5047 4.7
DKD-5048 4.8 6 44 82 36 35
DKD-5049 4.9
DKD-5050 5
DKD-5051 5.1
DKD-5052 5.2
DKD-5053 5.3
DKD-5054 5.4
DKD-5055 5.5
DKD-5056 5.6
DKD-5057 5.7
DKD-5058 5.8
DKD-5059 5.9
DKD-5060 6
DKD-5061 6.1 8 53 91 36 43
DKD-5062 6.2
DKD-5063 6.3
DKD-5064 6.4
DKD-5065 6.5
DKD-5066 6.6
DKD-5067 6.7
DKD-5068 6.8
DKD-5069 6.9
DKD-5070 7
DKD-5071 7.1 8 53 91 36 43
DKD-5072 7.2
DKD-5073 7.3
DKD-5074 7.4
DKD-5075 7.5
DKD-5076 7.6
DKD-5077 7.7
DKD-5078 7.8
DKD-5079 7.9
DKD-5080 8
Type No.            D1 d2 L2 L L4 Ls
DKD-5081 8.1 10 61 103 40 49
DKD-5082 8.2
DKD-5083 8.3
DKD-5084 8.4
DKD-5085 8.5
DKD-5086 8.6
DKD-5087 8.7
DKD-5088 8.8
DKD-5089 8.9
DKD-5090 9
DKD-5091 9.1 10 61 103 40 49
DKD-5092 9.2
DKD-5093 9.3
DKD-5094 9.4
DKD-5095 9.5
DKD-5096 9.6
DKD-5097 9.7
DKD-5098 9.8
DKD-5099 9.9
DKD-5100 10
DKD-5101 10.1 12 71 118 45 56
DKD-5102 10.2
DKD-5103 10.3
DKD-5104 10.4
DKD-5105 10.5
DKD-5106 10.6
DKD-5107 10.7
DKD-5108 10.8
DKD-5109 10.9
DKD-5110 11
DKD-5111 11.1 12 71 118 45 56
DKD-5112 11.2
DKD-5113 11.3
DKD-5114 11.4
DKD-5115 11.5
DKD-5116 11.6
DKD-5117 11.7
DKD-5118 11.8
DKD-5119 11.9
DKD-5120 12
DKD-5121 12.1 14 77 124 45 60
DKD-5122 12.2
DKD-5123 12.3
DKD-5124 12.4
DKD-5125 12.5
DKD-5126 12.6
DKD-5127 12.7
DKD-5128 12.8
DKD-5129 12.9
DKD-5130 13
Type No.            D1 d2 L2 L L4 Ls
DKD-5131 13.1 14 77 124 45 60
DKD-5132 13.2
DKD-5133 13.3
DKD-5134 13.4
DKD-5135 13.5
DKD-5136 13.6
DKD-5137 13.7
DKD-5138 13.8
DKD-5139 13.9
DKD-5140 14
DKD-5141 14.1 16 83 133 48 63
DKD-5142 14.2
DKD-5143 14.3
DKD-5144 14.4
DKD-5145 14.5
DKD-5146 14.6
DKD-5147 14.7
DKD-5148 14.8
DKD-5149 14.9
DKD-5150 15
DKD-5151 15.1 16 83 133 48 63
DKD-5152 15.2
DKD-5153 15.3
DKD-5154 15.4
DKD-5155 15.5
DKD-5156 15.6
DKD-5157 15.7
DKD-5158 15.8
DKD-5159 15.9
DKD-5160 16
DKD-5165 16.5 18 93 143 48 71
DKD-5170 17
DKD-5175 17.5
DKD-5180 18
DKD-5185 18.5 20 101 153 50 77
DKD-5190 19
DKD-5195 19.5
DKD-5200 20
