Long Shank Ball Nose End Mills-2 Flute
P6B100L-2T - Ball Nose
- Application
- Scope of application : Plastic mold、forging mold、casting mold、sheet metal mold、 vehicle parts and various industrial parts.
- Applicable materials : Mold steel、alloy steel、tool steel、heat-treated steel and soldering steel.
- Main features : The ball end mill is mainly used for fine milling and cutting curved surfaces. The superfine particle tungsten carbide base metal can make high-speed cutting on the high-speed M/C, and can process parts with hardness less than HRC 55.
Spec.

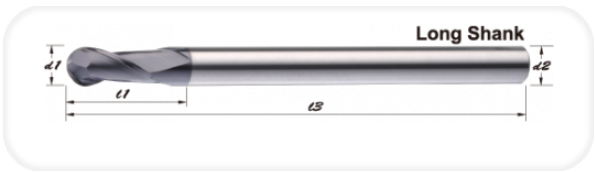

| Type No. | Diameter | Flute Length | O.A.L. | Shank Dia |
|---|---|---|---|---|
| 型號 | 直徑d1 | 刃長L1 | 全長L3 | 柄徑d2 |
| P6B100L-0202 | R1 | 4 | 100 | 6 |
| P6B100L-0302 | R1.5 | 6 | 100 | 6 |
| P6B100L-0402 | R2 | 8 | 100 | 6 |
| P6B100L-0602 | R3 | 12 | 100 | 6 |
| P6B100L-0802 | R4 | 16 | 100 | 6 |
| P6B100L-1002 | R5 | 20 | 100 | 10 |
| P6B100L-1202 | R6 | 24 | 100 | 12 |
| unit: mm | ||||
