Asymmetric Helix angle - 35°/38° ★For Stainless Steels

SSQE38-4T Asymmetric Helix angle - 35°/38° For Stainless Steels Cutting

Application
Scope of application: Plastic mold、forging mold、casting mold、electronic components、clock parts and other precision parts.
Applicable materials: Stainless steel、Mold steel、alloy steel、tool steel、heat-treated steel and soldering steel.
Main features: The nano-particle tungsten carbide and spiral shallow groove design of asymmetric helix 35°/38° use for high speed milling anti vibration, It is suggested that steels with hardness less than HRC60 should make lateral fine milling and cutting on the M/C miller. Its cutting efficiency is more than 6 times of typical end mills.
Another helix angle 38/41 & 41/43 & 43/46, etc. three different division angle of the circular grooves end mills models.

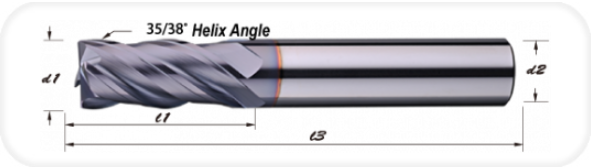

Spec.

Type No.            Diameter       Flute Length O.A.L. Shank Dia
型號 直徑d1 刃長L1 全長L3 柄徑d2
SSQE38-0604 6 15 50 6
SSQE38-0804 8 20 60 8
SSQE38-1004 10 25 75 10
SSQE38-1204 12 30 75 12
SSQE38-1604 16 40 100 16
SSQE38-2004 20 40 100 20
unit: mm
