- SSQE38-4T-ZR Asymmetric Helix Angle - 35°/38° For Stainless Steels Cutting
Asymmetric Helix angle - 35°/38° ZR ★For Stainless Steels
SSQE38-4T-ZR Asymmetric Helix Angle - 35°/38° For Stainless Steels Cutting
- Application
- Scope of application: Plastic mold、forging mold、casting mold、electronic components、clock parts and other precision parts.
- Applicable materials: Stainless steel、Mold steel、alloy steel、tool steel、heat-treated steel and soldering steel.
- Main features: The nano-particle tungsten carbide and spiral shallow groove design of asymmetric helix 35°/38° use for high speed milling anti vibration, It is suggested that steels with hardness less than HRC60 should make lateral fine milling and cutting on the M/C miller. Its cutting efficiency is more than 6 times of typical end mills.
- Another helix angle 38/41 & 41/43 & 43/46, etc. three different division angle of the circular grooves end mills models.
Spec.

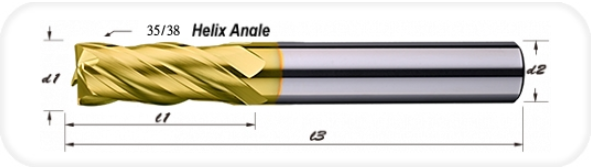

| Type No. | Diameter | Flute Length | O.A.L. | Shank Dia |
| 型號 | 直徑d1 | 刃長L1 | 全長L3 | 柄徑d2 |
| SSQE38-0604-ZR | 6 | 15 | 50 | 6 |
| SSQE38-0804-ZR | 8 | 20 | 60 | 8 |
| SSQE38-1004-ZR | 10 | 25 | 75 | 10 |
| SSQE38-1204-ZR | 12 | 30 | 75 | 12 |
| SSQE38-1604-ZR | 16 | 40 | 100 | 16 |
| SSQE38-2004-ZR | 20 | 40 | 100 | 20 |
| unit: mm | ||||
