Micro Diameter Ball Nose End Mills-2 Flute ZR Especially For Titanium
TSB-2T-ZR
- Application
- Scope of application: Plastic mold、forging mold、casting mold、electronic components、clock parts and other precision parts.
- Applicable materials: Stainless Steels、Titanium alloys、heat-treated steel and soldering steel.
- Main features : The ball end mill is mainly used for fine milling and cutting curved surfaces. The superfine particle tungsten carbide base metal can make high-speed cutting on the high-speed M/C, and can process parts with hardness less than HRC 60.
Spec.

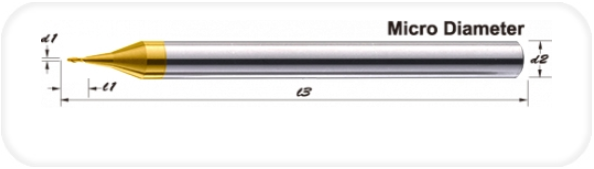

| Type No. | Diameter | Flute Length | O.A.L. | Shank Dia |
| 型號 | 直徑d1 | 刃長L1 | 全長L3 | 柄徑d2 |
| TSB-0032-ZR | R0.15 | 0.6 | 50 | 4 |
| TSB-0042-ZR | R0.2 | 0.8 | 50 | 4 |
| TSB-0052-ZR | R0.25 | 1 | 50 | 4 |
| TSB-0062-ZR | R0.3 | 1.2 | 50 | 4 |
| TSB-0072-ZR | R0.35 | 1.4 | 50 | 4 |
| TSB-0082-ZR | R0.4 | 1.6 | 50 | 4 |
| TSB-0092-ZR | R0.45 | 1.8 | 50 | 4 |
| TSB-0122-ZR | R0.6 | 2.4 | 50 | 4 |
| TSB-0142-ZR | R0.7 | 2.8 | 50 | 4 |
| TSB-0162-ZR | R0.8 | 3.2 | 50 | 4 |
| TSB-0182-ZR | R0.9 | 3.6 | 50 | 4 |
| TSB-0222-ZR | R1.1 | 4.4 | 50 | 4 |
| TSB-0242-ZR | R1.2 | 4.8 | 50 | 4 |
| TSB-0262-ZR | R1.3 | 5.2 | 50 | 4 |
| TSB-0282-ZR | R1.4 | 5.6 | 50 | 4 |
| unit: mm | ||||
