產品介紹
鈷鉻鉬醫療專用圓鼻刀4刃 ZR
CCMR-4T-ZR
- 應用範圍
- 適用對象 : 醫療模具、髖關節、鈷鉻鉬相關工件、電子零件、鐘錶零件及其他精密零件。
- 適用材料 : 鈷鉻鉬、鎳基、鈦合金、不鏽鋼、模具鋼、合金鋼、工具鋼、難加工材和導熱性低母材。
- 主要特性 奈米微粒碳化鎢母材，刀刃設計可使用於高速加工，大大提升切削效率，建議切削HRC60度以內之鋼材在M/C銑床上可進行側面高度精銑切削，圓鼻R角設計可防止崩刃。

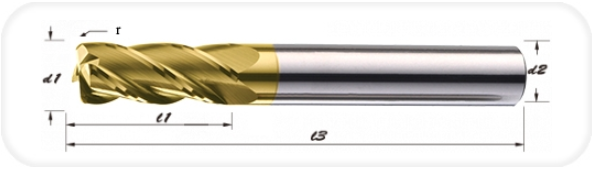

Spec.
| Type No. | Diameter | Corner R | Flute Length | O.A.L. | Shank Dia |
| 型號 | 直徑d1 | R角r | 刃長L1 | 全長L3 | 柄徑d2 |
| CCMR-03034-ZR | 3 | 0.3 | 8 | 50 | 4 |
| CCMR-03054-ZR | 3 | 0.5 | 8 | 50 | 4 |
| CCMR-03104-ZR | 3 | 1 | 8 | 50 | 4 |
| CCMR-04024-ZR | 4 | 0.2 | 10 | 50 | 4 |
| CCMR-04034-ZR | 4 | 0.3 | 10 | 50 | 4 |
| CCMR-04054-ZR | 4 | 0.5 | 10 | 50 | 4 |
| CCMR-04104-ZR | 4 | 1 | 10 | 50 | 4 |
| CCMR-05034-ZR | 5 | 0.3 | 13 | 50 | 6 |
| CCMR-05054-ZR | 5 | 0.5 | 13 | 50 | 6 |
| CCMR-05104-ZR | 5 | 1 | 13 | 50 | 6 |
| CCMR-06024-ZR | 6 | 0.2 | 15 | 50 | 6 |
| CCMR-06034-ZR | 6 | 0.3 | 15 | 50 | 6 |
| CCMR-06054-ZR | 6 | 0.5 | 15 | 50 | 6 |
| CCMR-06104-ZR | 6 | 1 | 15 | 50 | 6 |
| CCMR-06204-ZR | 6 | 2 | 15 | 50 | 6 |
| CCMR-08034-ZR | 8 | 0.3 | 20 | 60 | 8 |
| CCMR-08054-ZR | 8 | 0.5 | 20 | 60 | 8 |
| CCMR-08104-ZR | 8 | 1 | 20 | 60 | 8 |
| CCMR-08204-ZR | 8 | 2 | 20 | 60 | 8 |
| CCMR-10054-ZR | 10 | 0.5 | 25 | 73 | 10 |
| CCMR-10104-ZR | 10 | 1 | 25 | 73 | 10 |
| CCMR-10154-ZR | 10 | 1.5 | 25 | 73 | 10 |
| CCMR-10204-ZR | 10 | 2 | 25 | 73 | 10 |
| CCMR-10304-ZR | 10 | 3 | 25 | 73 | 10 |
| CCMR-12054-ZR | 12 | 0.5 | 30 | 74 | 12 |
| CCMR-12104-ZR | 12 | 1 | 30 | 74 | 12 |
| CCMR-12154-ZR | 12 | 1.5 | 30 | 74 | 12 |
| CCMR-12204-ZR | 12 | 2 | 30 | 74 | 12 |
| CCMR-12304-ZR | 12 | 3 | 30 | 74 | 12 |
| unit: mm | |||||
