ER 螺帽
ER Clamping Nut
- 應用範圍

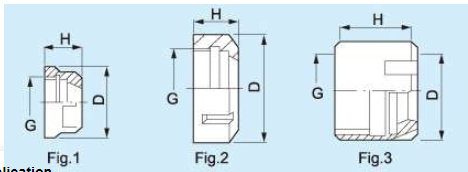

| Type No. | D | H | G | Fig |
| 型號 | 直徑 | |||
| ER11 | 19 | 13 | M14*P0.75 | 1 |
| ER16 | 28 | 17.5 | M22*P1.5 | 1 |
| ER20 | 34 | 19 | M25*P1.5 | 1 |
| ER25 | 42 | 20 | M32*P1.5 | 2 |
| ER32 | 50 | 22.5 | M40*P1.5 | 2 |
| ER40 | 63 | 29 | M50*P1.5 | 2 |
| ER11M | 16 | 12 | M13*P0.75 | 3 |
| ER16M | 22 | 18 | M19*P1.0 | 3 |
| ER20M | 28 | 19 | M24*P1.0 | 3 |
| unit: mm | ||||
